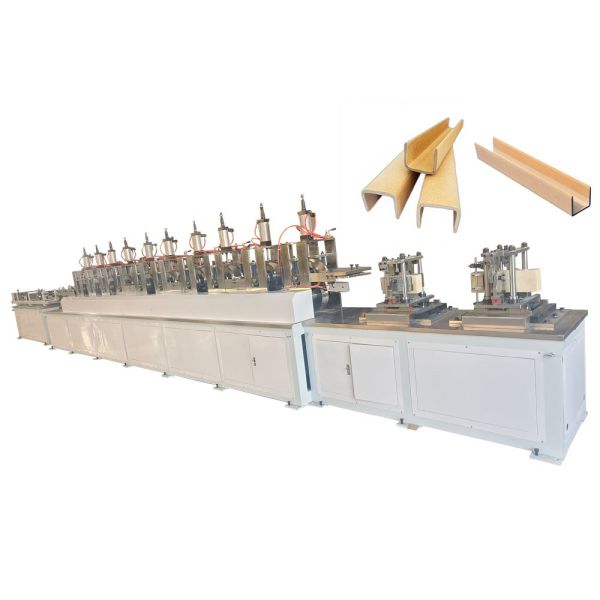

Paper U Channel Machine Cardboard U Shape Craft Paper Edge Protector Paper Corner Board Making Machine

Name: Paper U Channel Machine Cardboard U Shape Craft Paper Edge Protector Paper Corner Board Making Machine
Brand: KSPACK
Price: 19800 USD

Wholesale Paper U Channel Machine Cardboard U Shape Craft Paper Edge Protector Paper Corner Board Making Machine from china suppliers

Brand Name : KSPACK

Model Number : KSHJJ

Certification : CE ISO

Place of Origin : China(Mainland)

MOQ : 1

Price : 19800

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 30 sets per month

Delivery Time : 30 days

Packaging Details : processed wooden case package

Type : Paper U Channel Machine

Size : can be adjusted

Speed : 60 meter per min

video outgoing-inspection : Provided

Machine name : U shape paper corner machine

Plc brand : Schneider, Delta, Siemens

Working width : 100mm

Machine model : U shaped paper corner making machine

Contact Now

Paper U Channel Machine

Professional cardboard U-shape craft paper edge protector and paper corner board making machine designed for industrial manufacturing applications.

Technical Specifications

Paper Angle Protection Specification	Width: 20-100mm Thickness × Length: 50-9000mm
Production Speed	0-30 m/min
Host Power	7.5kW + 4.3kW
Control Mode	Numerical Control
Raw Material	Surface Paper: 150g-200g Core Paper: 300g-700g
Cutting Mode	Servo Tracking Cutting
Number of Operators	1-2 People

Configuration & Equipment

Octagonal Device: Seven Groups
Paper Holder Type: Right Angle Fixed Hoisting Paper Holder
Glue Supply: Stainless Steel Heating Automatic Circulation Double-Sided Gluing
Top Paper Device: Stainless Steel, Paper Basin with Transmission
Host Mesa: Stainless Steel
Transmission Device: Conveyor Belt and Receiving Table
Table Cutting Device: Numerical Control
Application Tools: One Set of Inner Hexagonal Wrenches

Dimensions & Weight

Host Size (L×W×H)	5100 × 840 × 1400 mm
Coverage Area (L×W)	32m × 3m
Host Weight	2780 kg
Total Weight	4500 kg
